Guaranteed Performance

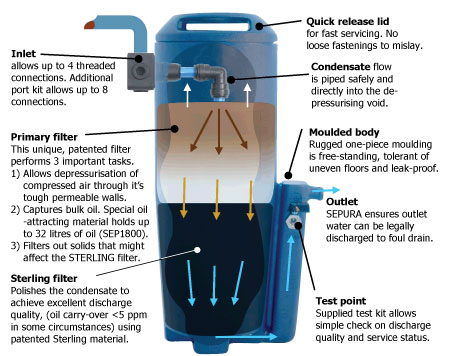

The SEPURA range of condensate cleaners employs a specially designed filter set to avoid using the troublesome weir, which is found in many traditional separators. Similarly, it has neither condensate settlement tank nor separate oil container.

In SEPURA, waste oil is trapped only in the filters, so handling is quick and easy. At service time, simply dispose of the old filters and replace them. There is no need to deal separately with the collected oil or untreated condensate from the settlement tank—because there isn’t any!

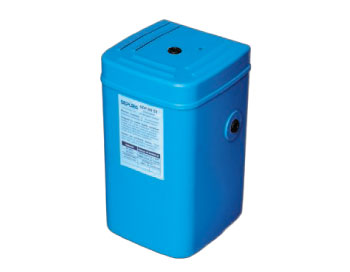

Disposable condensate cleaner for compressor system capacities of up to 1.7 m3/min or 11kW
Only SEPURA gives you this performance from such a small package. Our new STERLING filter medium gives SEP 60 ST the capacity to out-perform separators 4 times its size. And it’s pure simplicity to install and replace. Just fix the permanent back plate to a wall or cabinet, insert two push-in fittings and it starts to protect you—and the environment. Oily water in; clean water out. Discharge straight to the sewer (as low as 5ppm oil-in-water) —legally*

At the end of its service life, remove the push fittings, attach the clip-on lid and plug (provided with the replacement unit) and slide it off the wall plate. Sealed, outwardly clean and ready for disposal.

Now even better than ever
• STERLING ‘carbon-less’ filtration
• Works first time—every time
• 100% performance on synthetics

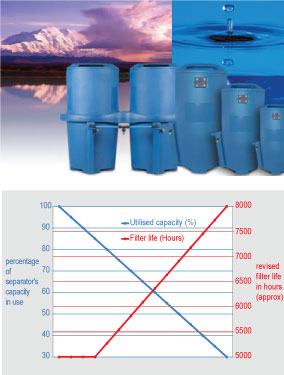

• Up to 5000 hours filter life
• No overflowing
• No pre-soaking
• Rugged reliability
• Consistent performance
• Simple installation
• Low maintenance
• Rapid servicing
• Lightweight handling
• British designed and built
• 10-year warranty and indemnity*

Clean condensate—clear conscience
We all know that the Water Resources Act was introduced to place legal restrictions on industrial discharges either to ground, waterway or storm-water drain for good reasons.

The option of discharging to the foul drain (sewer) system is controlled locally, and the authorities do not usually allow discharges containing more than 20ppm of oil to be introduced to the drains.

Just 250ml of oil can cover acres of water surface, preventing oxygenation; reducing the effectiveness of treatment plants and killing and other wildlife

A compressor of only 18kW can generate close to ten thousand litres of condensate each year, often containing up to 1000ppm of oil and other waste at the point of discharge.

It makes sense to treat this on site because the 99.9% of condensate that is water can be legally discharged to the sewer, while the disposal of a few litres of captured oil is easy and affordable.

SEPURA offers the most economical, simple and reliable method of complying with the legal requirements — letting you do your bit for the planet without breaking the bank.

Available exclusively from SEPURA, and probably the world’s largest capacity condensate cleaner, SEPURA 3500 & 7000 are uncompromising and reliable allies in the fight against pollution and the battle for legislative compliance.

• Unique and patented environmentally clean re-cycled ‘filter’ medium
• No moving parts
• No power consumption
• No maintenance required until service exchange is due
• Up to 2 years between services at capacities of 3500 or 7000 cfm
(100 or 200 m3/min)
• 5000 or 10000 cfm (140 or 285 m3/min) possible depending upon
site conditions

For too long, the large user of compressed air has been offered a difficult choice between condensate cleaning technologies; emulsion splitters or multiple ‘carbon bag’ separators.

If a splitter is chosen only for its large capacity, the penalty is high initial cost, complexity and high maintenance. Multiple small separators are notoriously tricky to balance on installation, which results in poor performance, unreliability and expensive waste.

SEPURA 3500 & 7000 offer the best of both worlds. High capacity, simple installation, low running costs and pure performance.

SEPURA 3500 & 7000 can even handle stable emulsions—condensate samples are required to determine performance and capacity.

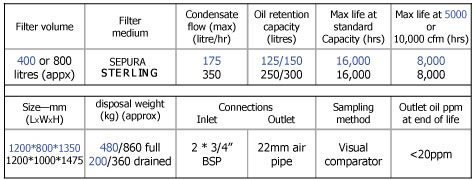

General description
These large SEPURA cleaners are designed to remove oil from compressed air condensate down to levels that are sufficiently low that discharge of treated condensate to the foul sewer is allowed.

Condensate discharged from the compressed air system (together with any compressed air also released) is fed into the substantial pressure relief chamber. Here the energy of discharge is removed, allowing calm entry of the condensate into the filter chamber.

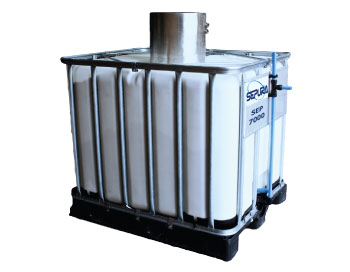

The chamber is built from a standard and inexpensive IBC (intermediate bulk container) with a total volume of approx 600 or 1000 litres (model dependent). 80% of this volume is filled with SEPURA STERLING, a patented oil adsorbing material with extremely high oil capacity and the capability to clean condensate down to <5 mg/ml (5ppm) oil content. The filter bed is submerged in condensate during operation.

A drainage channel collects cleaned condensate at the base of the filter bed, feeding it out through simple push-fit pipe-work, where the outlet position determines the height of water within the filter chamber. A vertical extension pipe ensures siphoning does not occur in the discharge pipe.

A ‘tee’ piece and tap provide an outlet condition monitoring point.

At the end of its service life, the IBC complete with oil residues is taken away for disposal at a registered site. The pressure relief chamber and discharge pipe-work are retained for connection to a new container with clean STERLING material.
