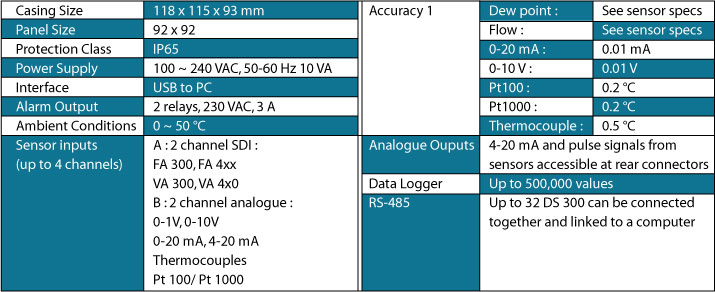

DS 300 is a multifunction measurement instrument for industrial applications. The base unit consist of LCD graphics display, 2 relay outputs, USB interface in a panel/wall mountable casing. Through various options DS 300 can be configured to specific customer
requirements. These options include: data recording, RS-485-interface, sensor inputs for CS flow and dew point sensors, sensor inputs for process signals (0-1V, 0-10V, 0-20 mA, 4-20 mA) and temperature sensors ( thermocouples, Pt100, Pt1000).
|
|
| |
Special Features :
- Wall or panel mountable
- Universal power supply 100 ~ 24 VAC
- Big graphic display
- 2 relay (240 VAC, 3A)
- 4 ~ 20 mA output
- Up to 4 sensor inputs
- Programmable alarm
- Options:
- Data loggerRS-485 interface
- Additional analogue inputs
|
DS 300 includes an optional data logger. Via the USB interface, Recorded data can be download tp PC.
Alternatively by using the CS data stick, recorded data from up to 64 DS 300 can be stored on the stick and then transferred tp PC.
 |
| |
VA 300
DS 300 multi channel display and data recorder

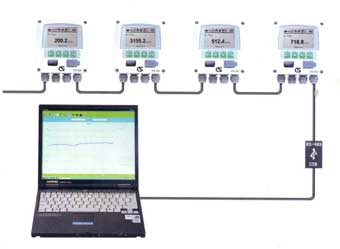

Via the optional RS-485 interface uo to 32 DS 300 can be connected on a bus and through a RS-485/USB converter to the USB port of a PC. By using CS-Bus software all relevant measurement values are one line on the screen.
For an easy configuration DS 300 comes with a Configuration software. This enables the user to configure the instrument via USB port of the PC. No sensor or power connection is required. A hassle free setup is guaranteed. |
 |
| |

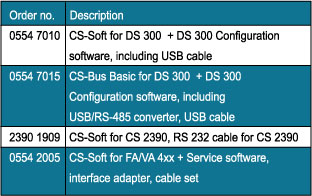

CS-Soft |
| Nowdays measuring is not enough. The measured data needs to be analyzed and understandable reports have to be created. With CS-SOFT this become an easy task |
 |
 |
| |
|
|
| Features CS-Soft |
|
- On-line data acquisition
- Memory download from instrument
- Graphical analyzes
- Support all CS devices ( DS 300, CS 2390, interface adapter )
- Table view
- Report generation
- Data export to Excel
- PDF-file generation
- Languages : Enlish, German, Chinese, Japanese
- Tutorial and Help
- For Windows XP and Vista
|
 |
|
