| Oil Sealed Rotary Vane Vacuum Pump Operating Principle : Wonchang’s Oil Sealed Rotart Vane Pump operates according to the rotary vane principal. The rotor is eccentrically positioned in the pump cylinder and has machined slots for sliding vanes. The centrifugal force of the rotation pushed vanes out these slots and towards the wall of the cylinder. The gas enters the vacuum pump inlet then passes through a built-in antisuck back valve that prevents the pump from rotating backwards and into the cylinder. The gas is compressed and pushed out through the exhaust opening located between the pump housing and exhaust box. The oil is feeding consistently to cylinder from oil sump for sealing and lubrication, and collects through oil exhaust filter in the bottom of the oil exhaust separator chamber and returns to the oil sump. |
|||

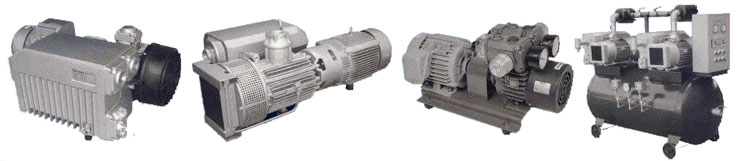

Features : Wonchang's WOVP pump is Oil Recirculating, Single Stage, *Air - Cooled and Direct Driven. *Compact Design - Reliability & Durability - Easy to maintain and operate *Simple Installation - Air-Cooled, No Water Required. *Direct Drive - Design requires no belts *Integral Exhaust Filter - Discharge Air 99.9% Oil Free Quite Operation |
 |
||
Standard Equipment :
|
 |
||
| Dimensional Data : | (mm) | ||
 |
|||

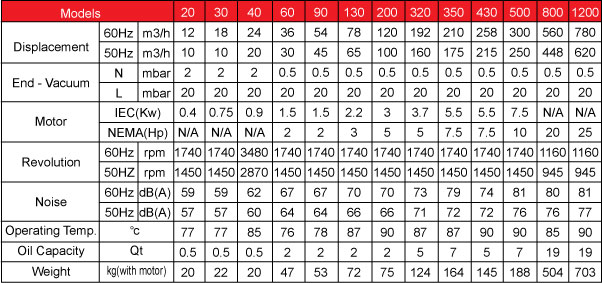

Technical Data : |
|||
 Application : WOVP series is ideal for use of followong applications : Food processing, Packaging, Plastics molding, Vacuum Lifting, Hospitals, Larboratories and many other industrial application. |
|||
 |
|||
| Dry Rotary Vane Vacuum Pump Operating Principle : Wonchang’s Dry Rotary Vane Pump operates according to the rotary vane principal. The rotor is eccentrically positioned in the pump cylinder and has machined slots for sliding vanes. The centrifugal force of the rotation pushed vanes out these slots and towards the wall of the cylinder. The gas enters vacuum pump through the inlet manifold (Air filter) and is compressed and pushed out through the outlet manifold (built-in Silencer) installed on pump module. The vacuum regulator installed on manifold is adopted for regulating vacuum level constantly. Carbon vane is employed for self-lubrication. |
||
| Features : Wonchang's WVS / WBS pumps are Carbon Vane Rotaty, Single Stage, Air-Cooled and Direct Driven. WBS series pump has a dual WVS pump module and is ideal for simultaneous operation of pressure and vacuum. *Compact Design - Reliability & Durability - Easy to maintain and operate *Simple Installation - Air Cooled - No Water Required. *Direct Drive (WVS Series) *Timing Belt Drive (WBS Series) *Quite Operation *Oil free |
 (WVS) |
|
Standard Equipment :
|
 (WBS) |
|

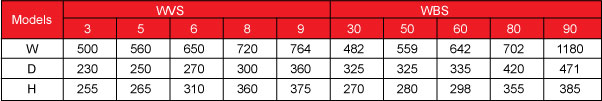

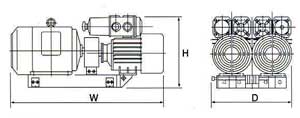

| Dimensional Data : | (mm) | ||
 |
|||

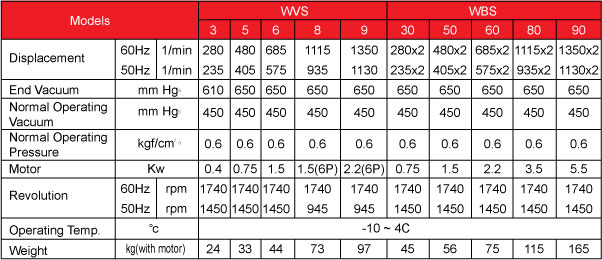

Technical Data : |
|||
 |
|||
| WVS / WBS series is ideal for use of following applications : Printing Industries, Boos Binding, Packing, Forming Automation, Absorption and many other industrial application. |
|||
 |
 |
 |
 |
 |
